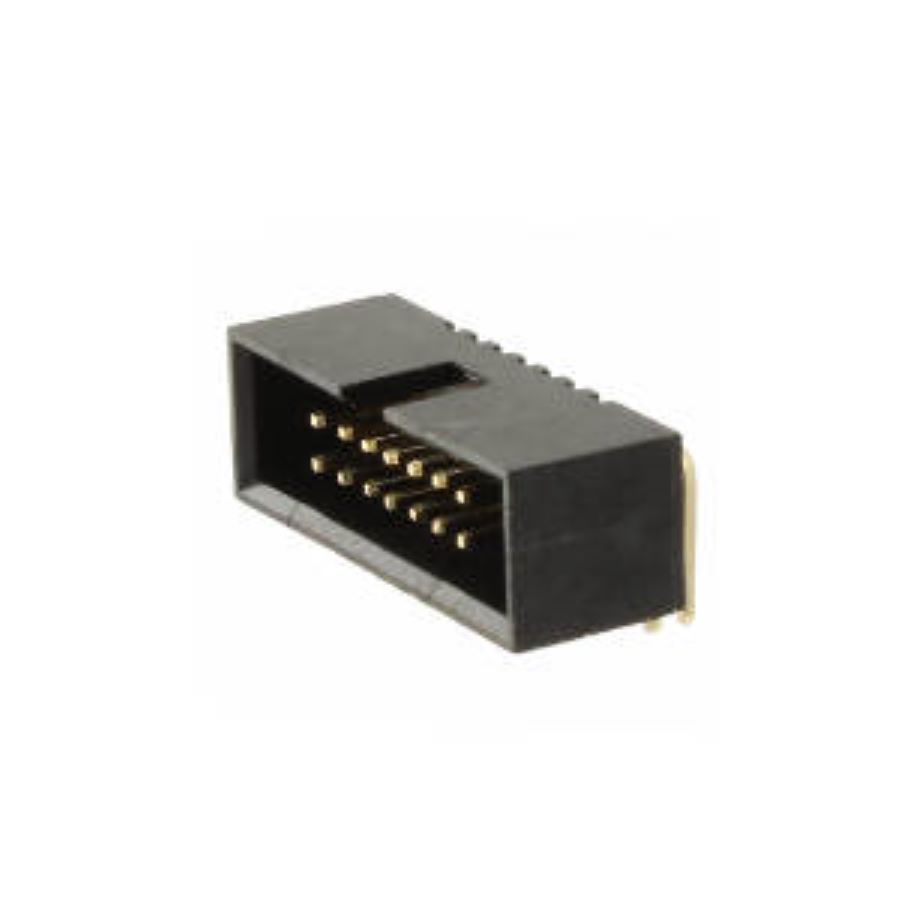

3220-14-0200-00
Manufacturer:
CNC Tech
Mfr.Part #:
3220-14-0200-00
Datasheet:
Description:
Connectors Through Hole DIP Number of Rows:2 Contact Plating:Gold Pitch:1.27 mm Number of Positions:14
| Parameter | Value |
|---|---|
| Termination | Solder |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 1.27 mm |
| Connector Type | Male Pin |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Fastening Type | Push-Pull |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 105 °C |
| Contact Material(Contact Finish) | Brass |
| Current Rating | 1 A |
| Contact Style | Male Pin |
| Contact Shape | Square |
| Contact Finish Thickness - Mating | Flash |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Packaging | Tray |
Stock: 1182
Distributors
pcbx
pcbxUnit Price$0.71950
Ext.Price$0.71950
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.71950 | $0.71950 |
| 10 | $0.61131 | $6.11310 |
| 25 | $0.57892 | $14.47300 |
| 50 | $0.54825 | $27.41250 |
| 100 | $0.51920 | $51.92000 |
| 300 | $0.49051 | $147.15300 |
| 500 | $0.46340 | $231.70000 |
| 1000 | $0.43925 | $439.25000 |
| 3000 | $0.41636 | $1249.08000 |
| 5000 | $0.39466 | $1973.30000 |
| 10000 | $0.37410 | $3741.00000 |
